Product Details
＋

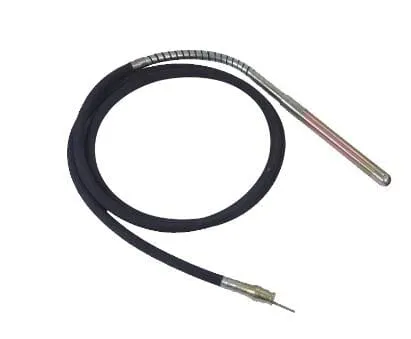

Aiko Concrete Vibrator Poker | Model : CV-ZV
Specifications :
- Size :
- 28MM 6M,
- 32MM 6M,
- 38MM 6M,
- 38MM 9M,
- 45MM 6M,
- 45MM 9M,
- 45MM 12M
- 60MM 6M
- 60MM 9M
| MODEL | ZV28 | ZV32 | ZV38 | ZV45 | ZV50 | ZV60 | |
| Dia. Of Vibrator Head (mm) | 28 | 28 | 38 | 45 | 50 | 60 | |
| Vibrating Frequency (Hz) | 200 | ||||||
| Diameter of Flexible Hose(mm) | Outside | 25 | 30 | 30 | 32 | 36 | 36 |
| Inner | 14 | 16 | 16 | 18 | 20 | 20 | |
| Dia. Of Flexible Shaft (mm) | 8 | 10 | 10 | 12 | 13 | 13 | |
| Amplitude (mm) | 1.11 | 1.13 | 1.18 | 1.2 | 1.28 | 1.28 | |
| Weight (kg) (6m) | 10 | 10.6 | 15.2 | 17.5 | 19 | 22.7 | |
| Dimension (mm) (6m) | 830 X 650 X 55 | 830 X 650 X 60 | |||||
